Precision Die Casting Heat Sink Manufacturer for Industrial Applications
This custom aluminum die casting heat sink housing is designed for applications requiring both structural strength and efficient heat dissipation. The component combines the advantages of aluminum die casting technology with precision CNC machining to achieve high dimensional accuracy and stable performance.
Aluminum die casting heat sink parts are widely used in electronics, LED lighting systems, power supplies, motor controllers and industrial equipment where reliable thermal management is required.
At Qingdao Dmetal, we provide complete manufacturing solutions including die casting mold development, aluminum die casting production, CNC machining, surface finishing and quality inspection. OEM customization is supported based on customer drawings, samples or technical requirements.

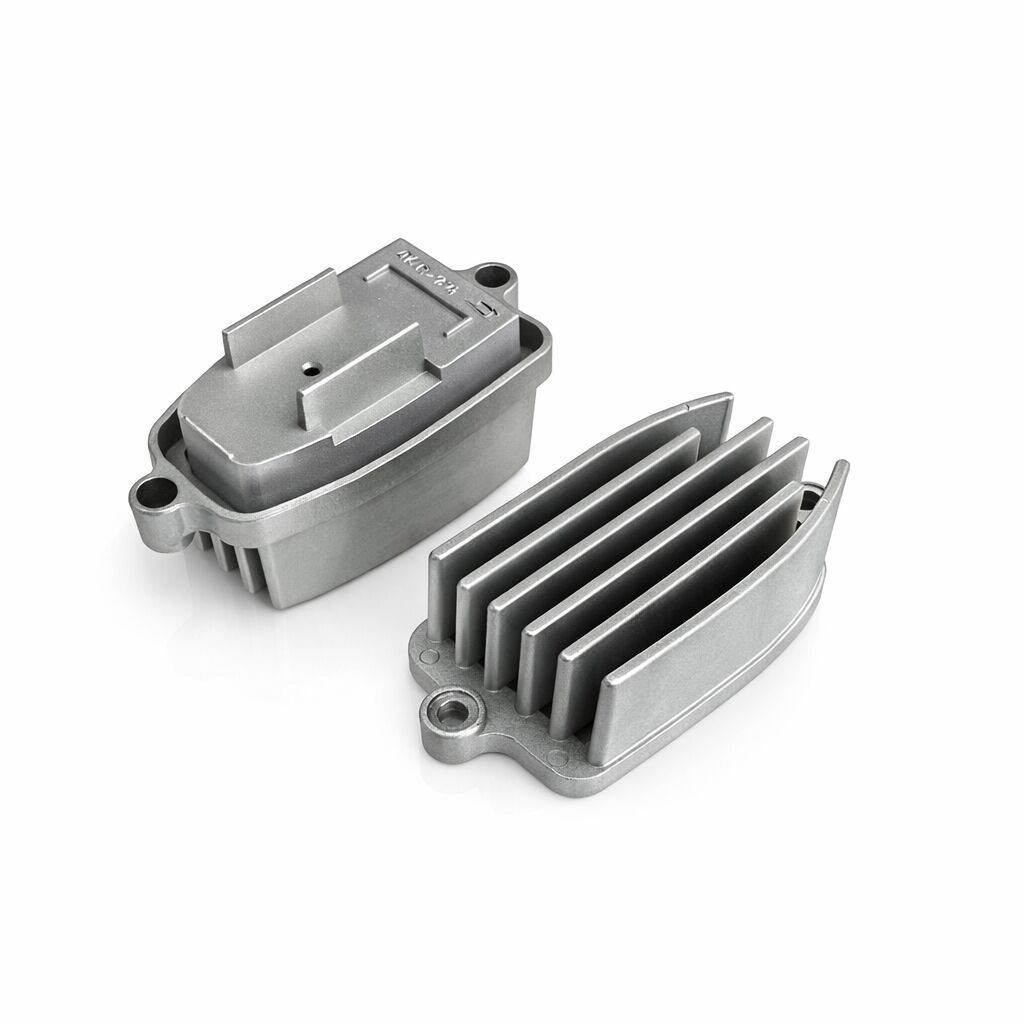

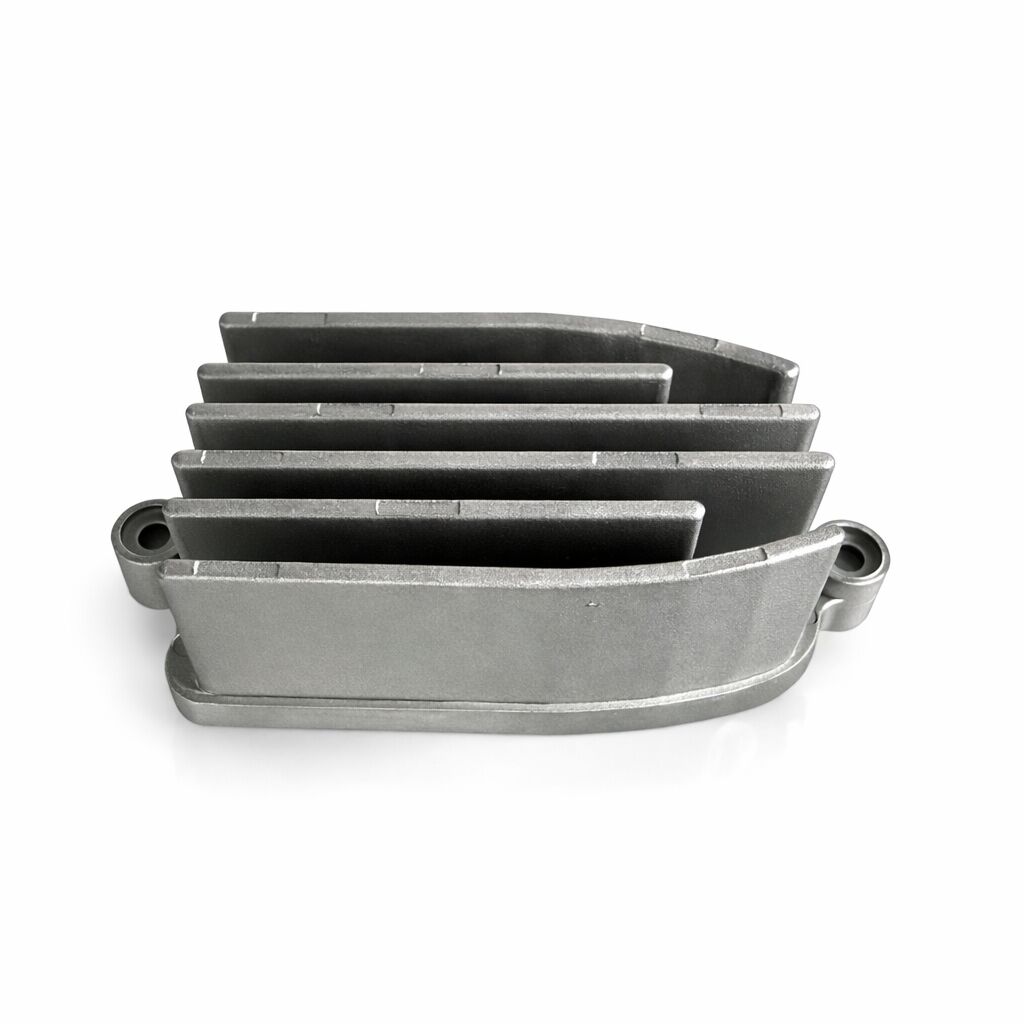

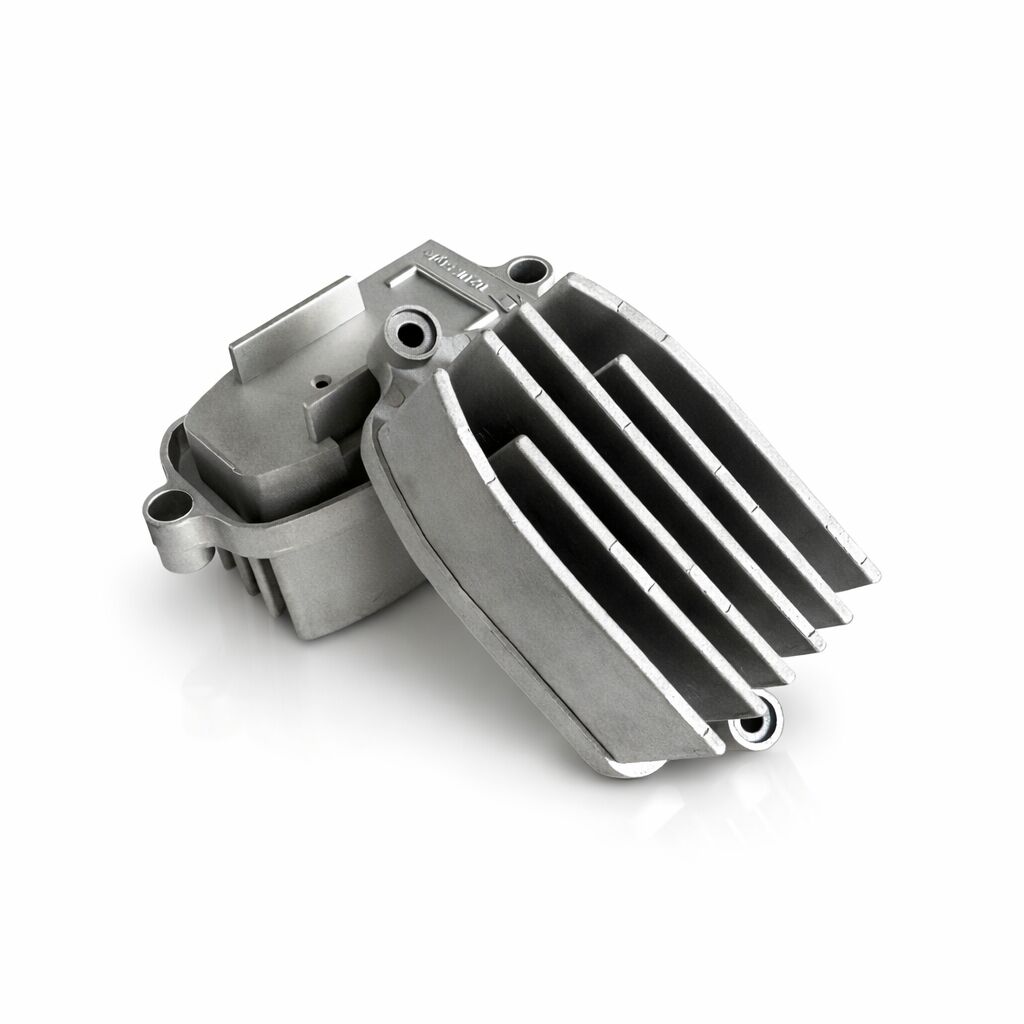

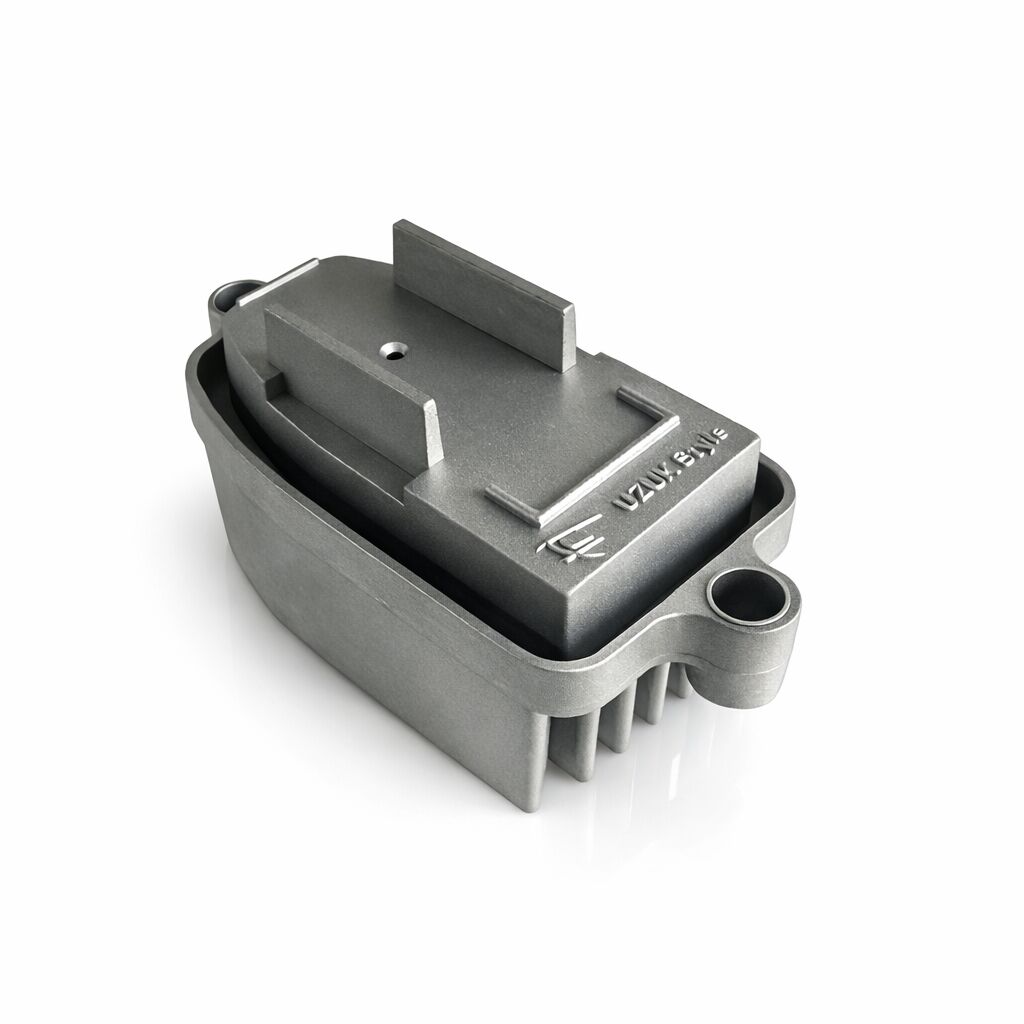

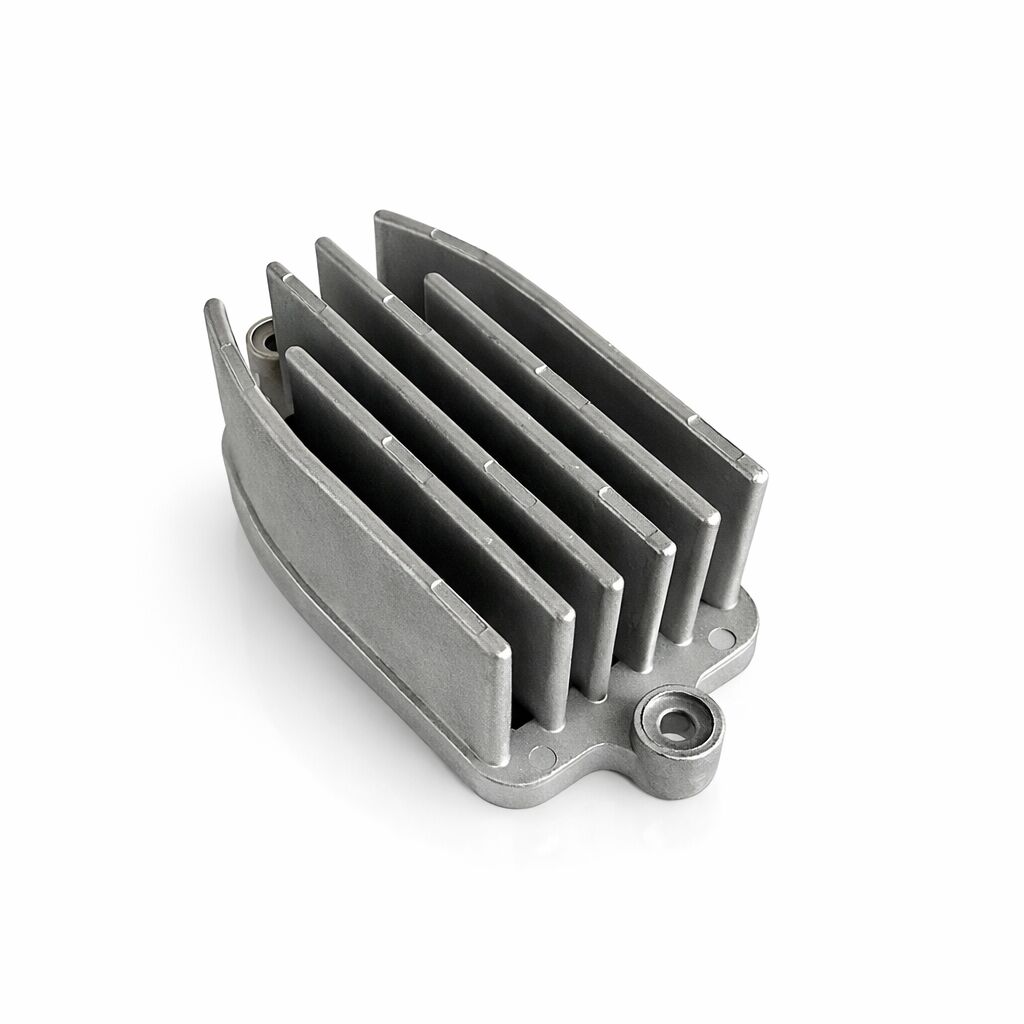

The aluminum die casting heat sink housing shown above is produced using high-pressure die casting technology. This manufacturing process allows molten aluminum alloy to be injected into a precision mold under high pressure, forming complex structures such as cooling fins, mounting holes and reinforcement ribs in a single operation.
Compared with machining heat sinks from solid aluminum blocks, die casting offers several advantages. It reduces production cost for medium to large production volumes while maintaining consistent dimensions and surface quality.
After casting, the component can undergo secondary processing such as CNC milling, drilling, tapping and surface trimming to meet assembly requirements. Surface finishing treatments can also be applied to improve corrosion resistance and product appearance.
These aluminum die cast heat sink housings are commonly used in products that require both heat dissipation performance and structural durability.
The integrated cooling fins increase surface area and allow effective heat transfer from electronic components to the surrounding air.
Aluminum alloys provide an excellent strength-to-weight ratio, making them suitable for electrical equipment and industrial applications.
Die casting allows multiple features such as ribs, mounting bosses and cooling fins to be integrated into one component.
Secondary machining ensures that critical dimensions and assembly interfaces meet design requirements.
Die casting provides consistent dimensional stability, making it ideal for mass production of aluminum heat sink housings.
Parts can be manufactured according to customer drawings, 3D models or physical samples.
|
Item |
Specification |
|
Process |
Aluminum Die Casting + CNC Machining |
|
Material |
Aluminum Alloy (A380 / ADC12 or customized) |
|
Surface Treatment |
Powder Coating / Anodizing / Sandblasting / Polishing |
|
Tolerance |
According to drawing requirements |
|
Production Type |
OEM Custom Manufacturing |
|
Application |
Electronics, LED Lighting, Power Supply, Industrial Equipment |
The manufacturing of aluminum die casting heat sink housings follows a structured production workflow to ensure consistent quality.
1 Engineering Review
Before tooling production begins, our engineering team performs a DFM (Design for Manufacturing) analysis to optimize the part structure for die casting.
2 Mold Design and Tooling Production
Based on the approved design, a dedicated die casting mold is developed. Tooling accuracy directly affects casting quality and dimensional stability.
3 Aluminum Die Casting
Molten aluminum alloy is injected into the mold cavity under high pressure to form the final casting structure.
4 Secondary CNC Machining
After casting, precision machining operations such as drilling, milling, tapping and trimming are performed to meet assembly requirements.
5 Surface Treatment
Surface finishing processes are applied to improve appearance and corrosion resistance.
6 Final Inspection
Each batch of products undergoes dimensional inspection and visual inspection before packaging and shipment.

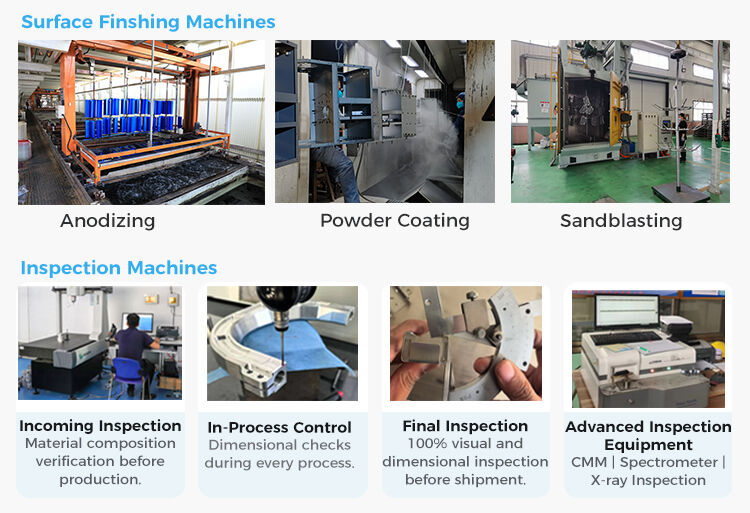

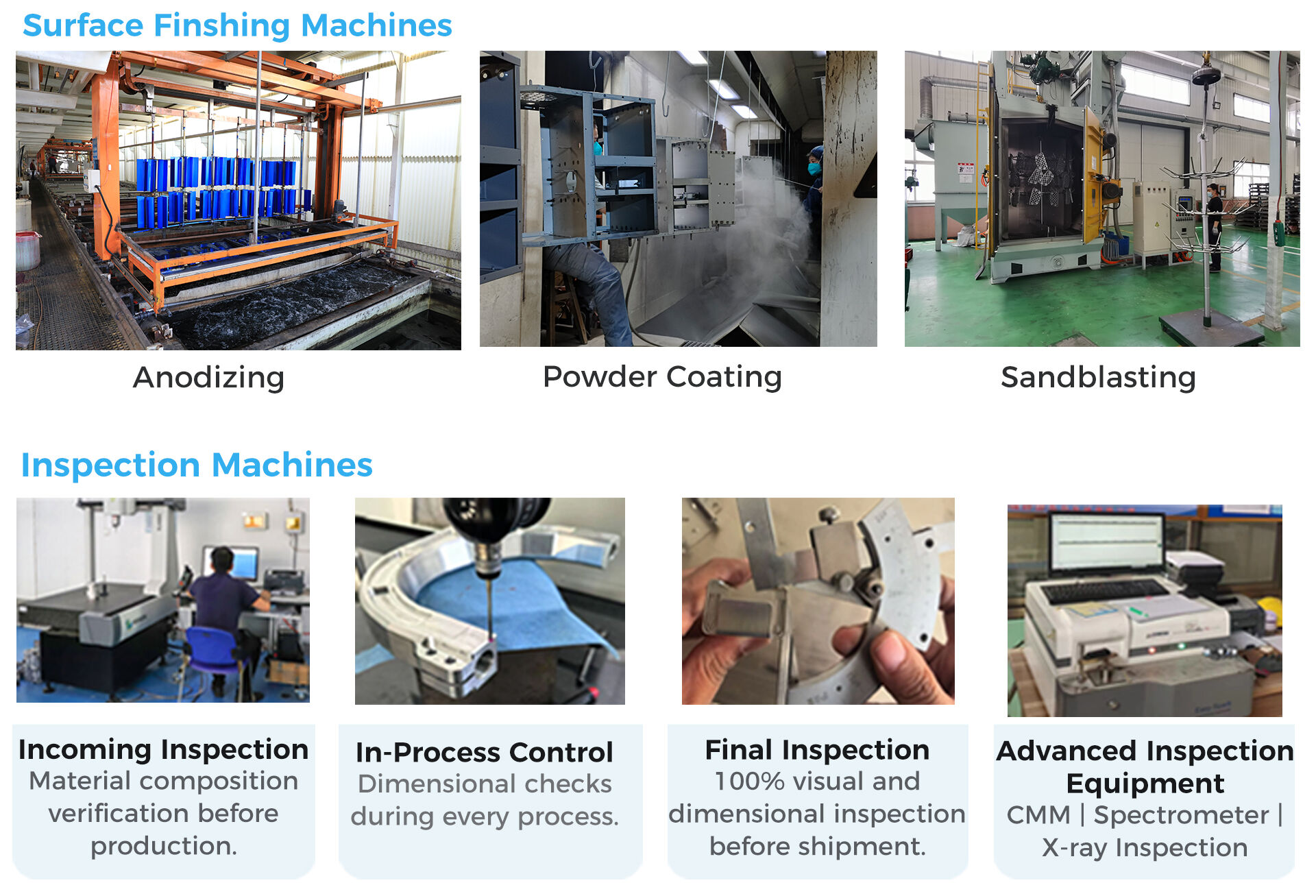

Various surface finishing options are available depending on application requirements and product appearance needs.
Common surface treatments for aluminum die casting parts include:
These finishing processes improve corrosion resistance, durability and visual quality of the aluminum heat sink housing.
Aluminum die casting heat sink housings are widely used in industries that require efficient heat dissipation and structural protection.
Heat sink housings help dissipate heat generated by LED modules and extend product lifespan.
Aluminum housings improve cooling efficiency for power electronics and electrical converters.
Die cast aluminum components are commonly used in motor controllers and drive systems.
Various industrial control systems and electronic equipment use aluminum housings for heat dissipation and structural support.
Die cast aluminum housings provide protection and thermal management for sensitive electrical components.
Common aluminum alloys include A380 and ADC12, which offer good casting performance, strength and thermal conductivity.
Yes. We support OEM custom production based on 2D drawings, 3D files or samples provided by customers.
Yes. CNC machining services such as drilling, milling, tapping and precision finishing are available.
Available finishes include anodizing, powder coating, sandblasting, polishing and painting.
These components are widely used in LED lighting, electrical equipment, power supply systems, industrial electronics and motor control units.
If you are looking for a reliable aluminum die casting heat sink housing manufacturer, our engineering team can provide technical support and competitive quotations.
To receive an accurate quotation, please provide the following information:
Once we review the project details, our team will respond with a quotation and production recommendations.
Start your project today by sending your drawings or inquiry to our team.
